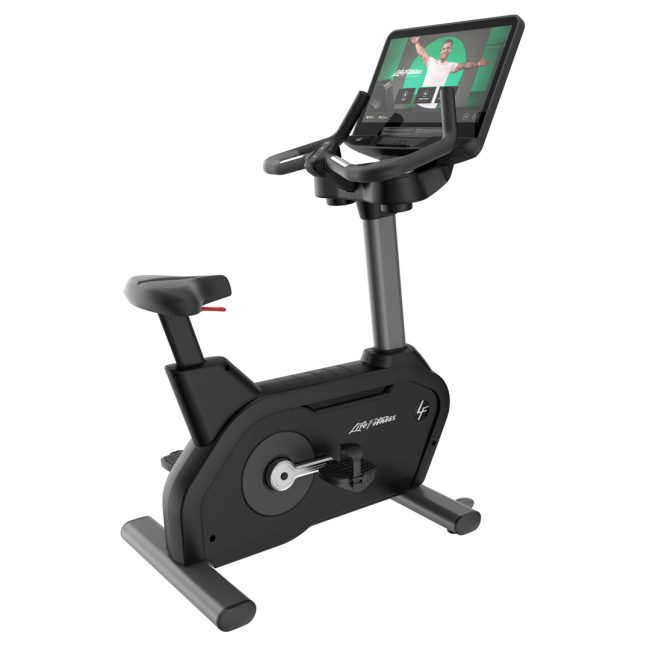

Introducing the next generation of trusted Life Fitness cardio–the Integrity+ Lifecycle® Upright Bike. Designed to elevate your facility with modern design touches that draw attention, and console choices that include the captivating Discover SE4 Console. Immersive cardio workouts are provided through easy access to entertainment and popular fitness apps. Hundreds of fitness experiences are accessible through the complimentary Life Fitness On Demand+, available on the SE4 console.

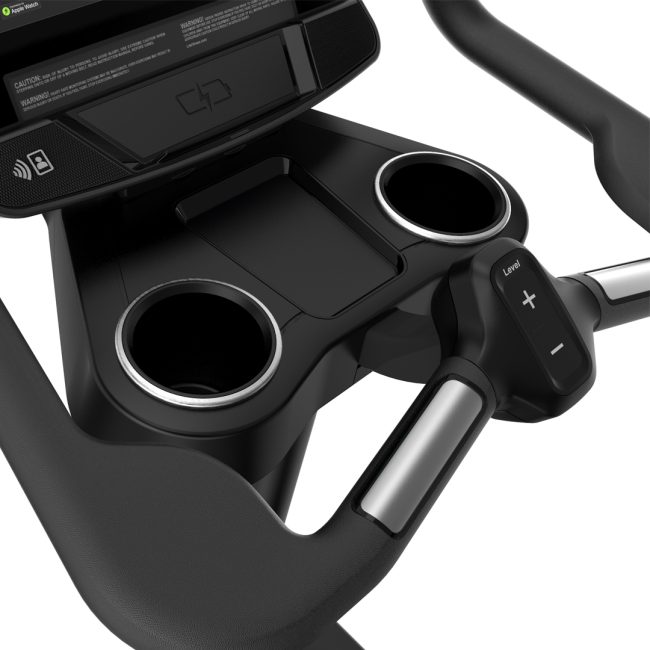

The Integrity+ Upright Bike features a comfortable seat that is ergonomically sound and can be fine tuned for the perfect riding position. Wide, self-leveling pedals with simple buckle straps allow exercisers to get on and go. The handlebars are designed to offer cruising, hybrid and race positions. The bike offers integrated resistance controls, to make in-workout changes easy, and elbow pads for added comfort. The self-powered generator system allows for a smooth and quiet ride.
The inviting bike is an ideal choice for facilities seeking modern appeal and a multitude of options to create engaging experiences for a diverse range of exercisers.
| Description |
Integrity+ Cardio Upright Bike |
| Console |
16” or 24” Smart Touchscreen SE4 Console ; SL LED Console |
| Handlebars |
Ergonomic racing with elbow rest |
| Quick Controls |
Yes – Center of handlebar |
| Saddle |
Improved Comfort Curve™ Seat |
| Pedals |
Self-Leveling Wide Ride™ Pedals |
| Pedal size |
6.56″ x 5.5″ (16.7 cm x 14 cm) |
| Pedal Straps |
Yes |
| Accessories Holder |
Integrated Accessory Tray |
| Color Options |
Diamond White, Arctic Silver, Titanium Storm, Smooth Charcoal, Black Onyx |
| Seat |
Improved Comfort Curve™ Seat with 42 Fine-Tuned Seat Adjustments with 1-Touch lever |
| Step-over height |
21.14″ (536.9mm) |
| User Height Range |
4’9″ – 6’5″ |
| Max User Weight |
400 lb (182 kg) |
| Transport Wheels |
Yes |
| Drive System |
Generator Drive System with 8-Ribbed Poly-V Belt resistance system |
| Resistance Levels |
26 |
| Resistance Type |
Hybrid Eddy current brake with brushless internal generator for low drag and high power capability |
| Belt Drive |
Single stage drive with self-tensioning idlers for minimal mechanical drag and low maintenance |
| Multi Ribbed Belt Drive |
Yes |
| Generator |
Generator |
| Riding Variety |
In-saddle only |
| Crank size |
165mm (6.5″) |
| Touch |
Yes |
| Telemetry |
Yes |
| Self-powered |
SL Console only |
| Power Requirements |
120V, 20A or 230V, 10A (varies by country) outlet Required for Attachable TV and Discover Consoles |
| Minimum Watts |
29 Watts |
| Maximum Watts |
900 Watts |
| Minimum RPM |
30 rpm |
| Dimensions (L x W x H) |
41.5″ x 24.5″ x 54.5″ (105 x 62 x 138 cm) |
| Assembled Weight |
169lbs (76.5kg) |
| Shipping Weight |
200lbs (91kg) |
| Shipping Configurations (for non-installed purchases) (L x W x H) |
63″ x 27″ x 39″ (160.02 cm x 68.58 cm x 99.06 cm) |
